LUMATREE WALL / SOLID WOOD UPLIGHT & DOWNLIGHT

Atmosphere or function?
Wall delivers both.

A quiet solid-wood wall light with two coordinated layers: broad uplight shapes the room while controlled downlight supports the surface below.

See it in the roomTechnical overview

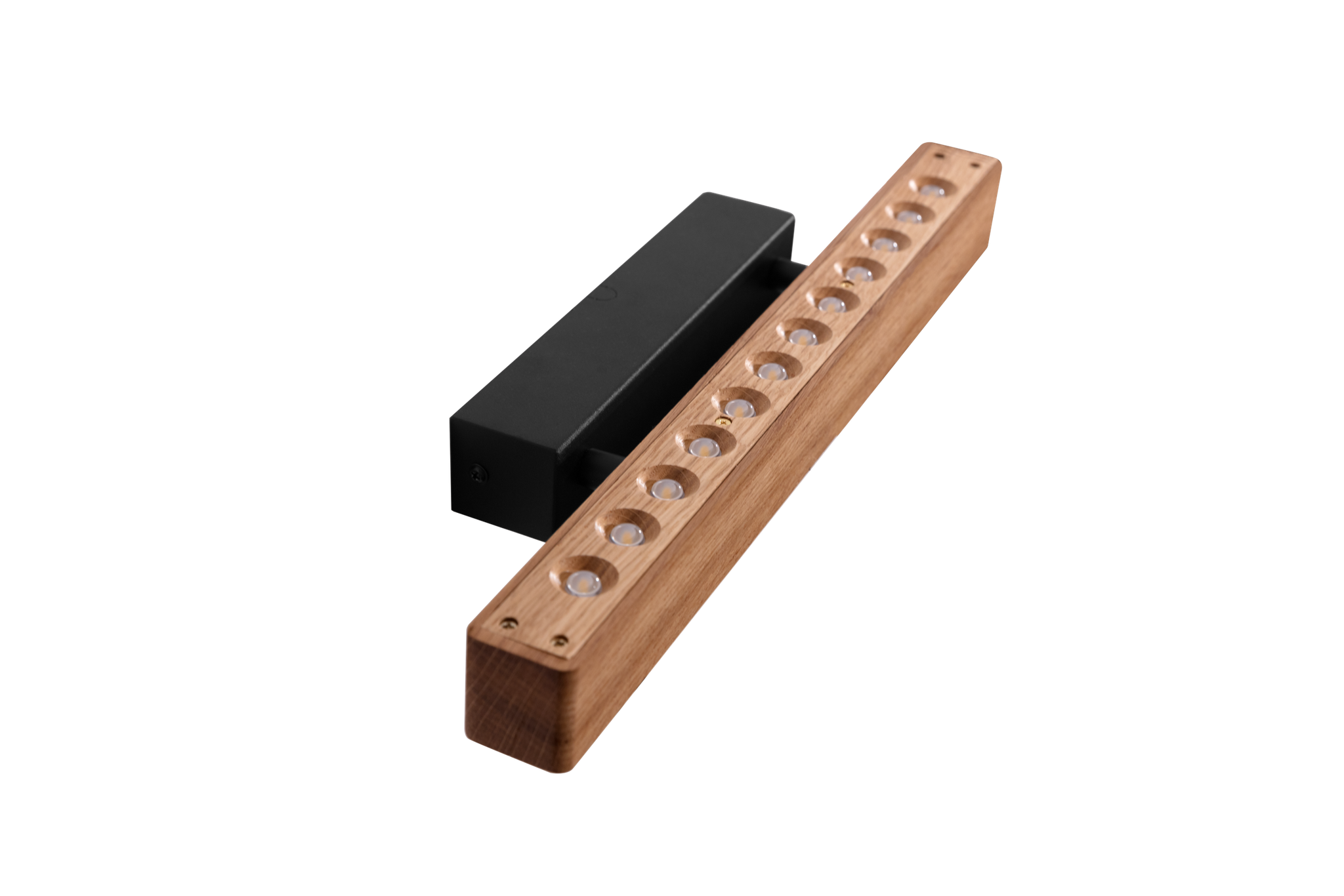

Lumatree Wall solid wood wall luminaire with recessed opticsSolid wood · uplight + downlight
Two light layers64° down · 160° upUseful light below, ambient light across the wall.
Visual comfortRecessed opticsBoth sources stay contained within the timber head.
Real materialSolid woodOak, walnut or black ash.
Lumatree Wall photographed above an armchair with light on the wall above and below

01 / UPLIGHT & DOWNLIGHT

Light above.
Useful light below.

A broad uplight adds an ambient layer to the wall, while a controlled downlight directs light towards the area below. Both optical systems are recessed within one solid-wood bar.

Actual product photograph. The furniture and placement are illustrative. Wall brightness and surface coverage depend on installation height, head tilt, wall finish and furniture position.

02 / MATERIAL & DETAIL

Real wood.
Two optics held within.

The room sees a quiet timber line. Above and below, recessed optics shape two different layers of light while keeping the technical system visually contained.

OakWalnutBlack AshAdjustable head
Lumatree Wall recessed optical array and rear mounting housing

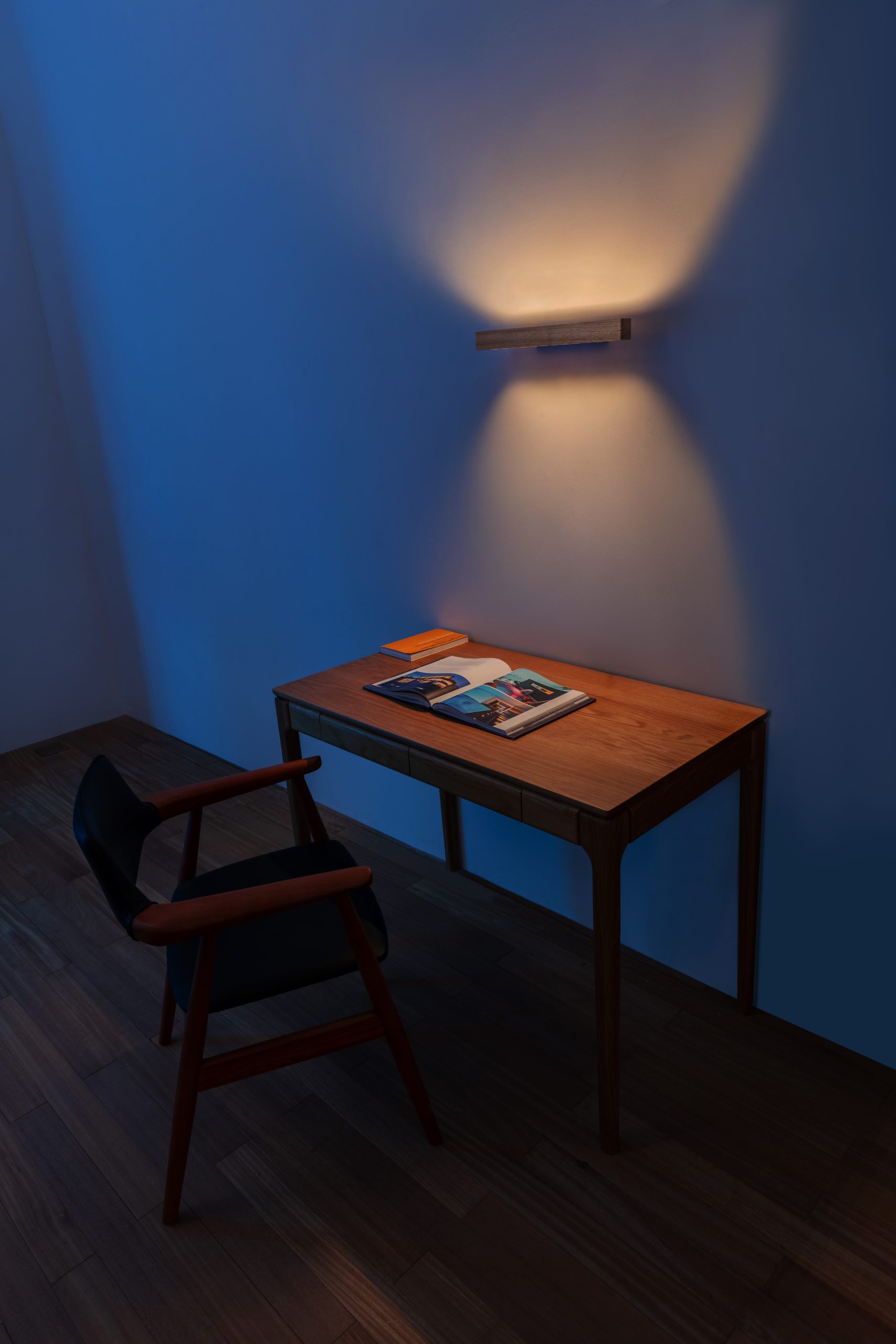

Lumatree Wall illuminating a desk with uplight and downlight

03 / PRODUCT SCALE

Mounted on the wall.
Space stays free.

01Solid-wood light bar length: 390 mm.
02Timber section: 35 × 38 mm.
03Rear housing: 200 × 32 × 38 mm.
04Projection from the wall: 87 mm.

04 / TECHNICAL OVERVIEW

Product details,
at a glance.

Core values are taken from the current Lumatree Wall product guide and photometric data. Regional model codes and final project configurations can be confirmed during specification.

Dimensions390 × 35 × 38 mm

Rear housing 200 × 32 × 38 mm; projection 87 mm.

Light output1,740 lm · 12 W

960 lm down / 780 lm up; 220–240 V.

Distribution64° down / 160° up

Controlled task light below; broad ambient light above.

Colour qualityCRI 92

Fixed 2700K / 3000K; Dim-to-Warm 1800–4000K; Tunable White 2700–6500K.

ControlOn/Off · TRIAC · DALI

Wireless Casambi / Matter; availability varies.

MaterialOak / Walnut / Black Ash

Contact Eric for product-specific material documentation.

Weight & adjustment0.85 kg

Slight head tilt redirects the downlight field.

Protection & supportIP20

Indoor use; 5-year warranty.

Wall brightness and working-plane coverage depend on mounting height, tilt, wall finish and surface position. Use the available IES data for project-specific modelling.

5-year complete luminaire warranty

View warranty details

No minimum order quantity

Samples available

Discuss samples with Eric

05 / PROFESSIONAL RESOURCES

Specify with confidence.

Current product, photometric and design-development files are available below. Regional configuration can be confirmed during project specification.

Product-specific compliance documentation is available on request.

Request compliance documents →
Complete professional packageZIPProduct guidePPTXPhotometric fileIESPhotometric reportPDF2D CAD · three viewsDXF3D modelSTEPInstallation instructionsPDF
